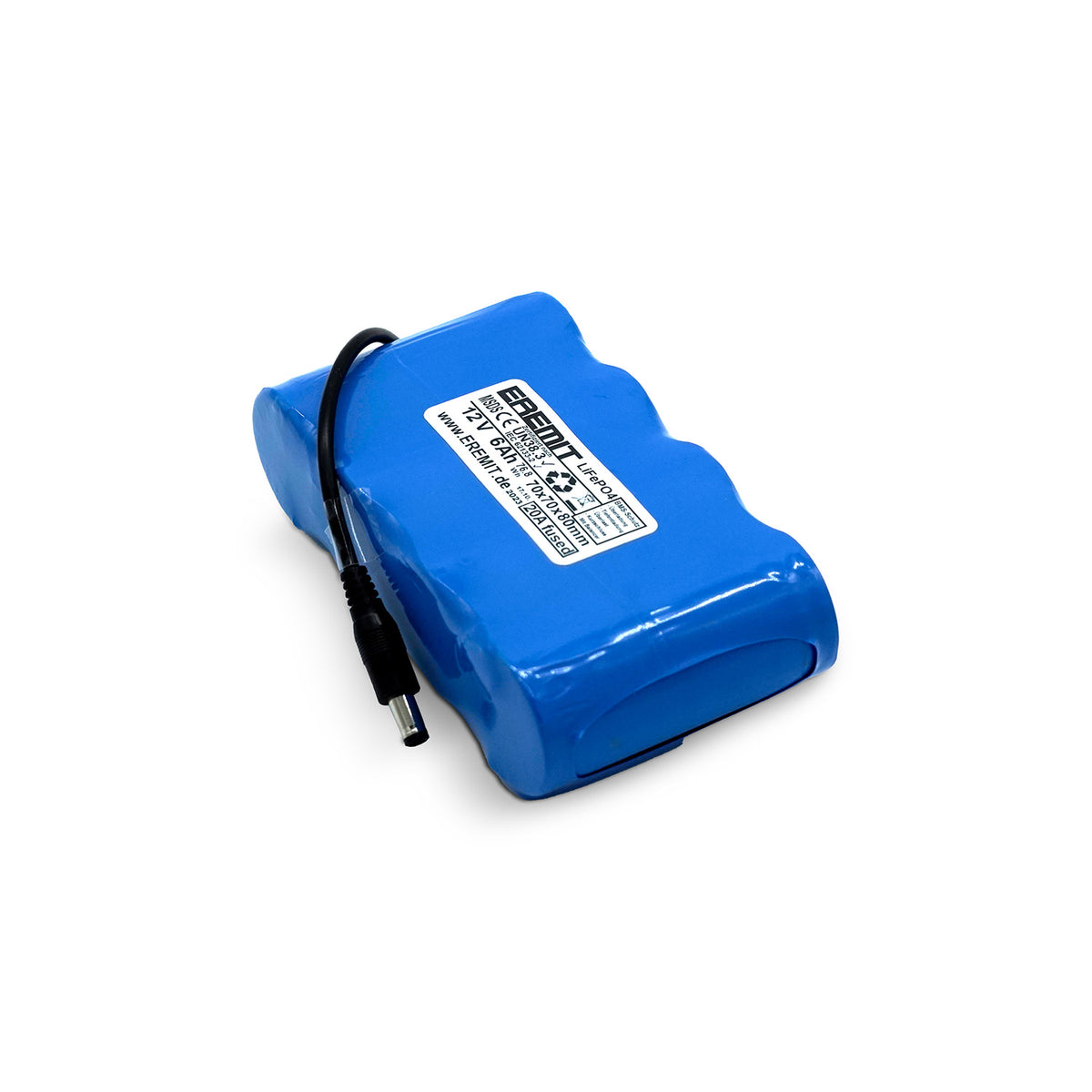

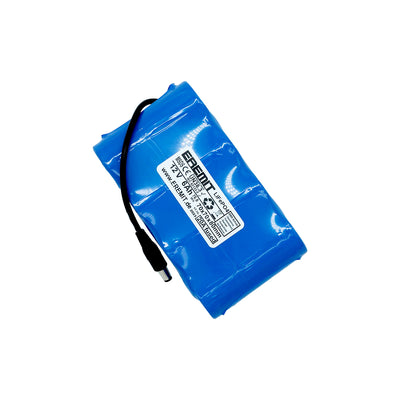

Eremit battery for Heating Rug "St. Moritz"

Safety

• Single cell monitoring
• Short-circuit protection
• Overcharge protection
• Deep discharge protection

Performance

• Nominal voltage: 12.8 V

• Charging voltage: 14.4 V
• End-of-charge voltage: 10 V
• Capacity: at least 6 Ah
• 6 A continuous power, 10 A limit, 20 A pulse power

Service Life

• Over 5,000 charging cycles
• Up to 15 years service life
• Less than 2% self-discharge per month

• an additional battery for the SUNRIDE St. Moritz heated blanket
• longer periods of use where a single battery is not enough
• alternating use, while the second battery is being charged
• regular or intensive use of the heated blanket
• long-term use due to the high number of possible charging cycles

a conventional lithium power bank can, in extreme cases of a cell defect, short circuit, or severe overheating, enter a state known as thermal runaway? In this process, the cell continues to heat itself up until it can lead to a fire or even an explosive failure. This is exactly why, for the St. Moritz heated blanket, we deliberately choose a LiFePO4 battery from EREMIT instead of an ordinary power bank: Lithium iron phosphate is thermally more stable than many other lithium cell chemistries. Additionally, the integrated BMS monitors the battery and automatically shuts it down in the event of a short circuit, overcharging, deep discharge, or overheating.

Why is a second battery useful for the heated blanket?

With a spare battery, you can use two batteries interchangeably. While one is charging, the second is available for the heated blanket. This is particularly practical for regular use in the stable, at tournaments, or while on the go.

What is a BMS and why is it important for a heated blanket?

The Battery Management System, or BMS for short, monitors the battery during charging and discharging. Among other things, it protects against short circuits, overcharging, deep discharge, and critical temperatures. In addition, the individual cells are monitored and balanced.

How long does it take to fully charge the battery?

With the charger included with the heated blanket, the charging time is around six hours. The longer charging time is intentionally designed for gentle charging. A moderate charging current puts less strain on the cells, reduces heat generation, and helps maintain the long-term lifespan of the LiFePO4 battery.

Does the battery need to be removed from the heated blanket for charging?

No. You can either take it out and charge it separately or leave it in the heated blanket and connect it via the cable provided for this purpose.

Does the battery lose energy if the heated blanket is not used for a long time?

Only to a small extent. EREMIT specifies a self-discharge rate of less than two percent per month for this battery. As a result, a large portion of the stored energy is retained even during longer periods of disuse.

• Check for damage (e.g., tears, defective heating wires, cables, or seams) before each use.
• Use only for the intended purpose on horses.
• Do not use on open wounds, skin irritations, or acute inflammation.
• Do not use as an under-rug, stable rug, or for unattended continuous use.
• Do not use while riding or during uncontrolled movement of the horse.
• Do not perform unauthorized repairs, modifications, or interventions on the electrical system.
• Use only the supplied battery and the designated charging cable.
• Do not open, puncture, or throw the battery into fire.
• Protect the battery from moisture, frost, and direct sunlight.
• The rug must not be used on the horse during the charging process.
• Follow charging time and charging procedures as per the instructions.
• Check the fit regularly to avoid pressure points or chafing.
• Clean only according to the care label. Do not dry clean or machine wash unless expressly permitted.
• Product contains electrical components and batteries. Do not dispose of with household waste.
• Remove batteries before disposal and dispose of separately in accordance with the Battery Act (BattG).
• Store the product in a cool, dry place when not in use.
• The product is not a medical device and does not replace veterinary treatment.
• Disconnect from the power supply before cleaning.
• Not suitable for human use.
